LAMINAR AIR FLOW (Modular OT)

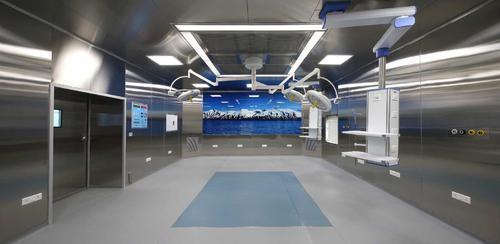

Modular Operation theatre walls and Ceiling made of 1 mm thick stainless steel sheets of AISI 304 grade, visible side having satin/mat finish and coated with protective PVC taping, which shall be removed upon completion of the Operation theatre, before handing over.
The inner surface walls are fixed to the brick walls with essential support at equal intervals with using anchor fasteners and fixtures of approved makes.
Wall panels are made seamless, and homogeneous, so as to have no cavity or projection at joints.
The vertical panels of the S.S walls match flush with the curved skirting of the flooring without projection or cavity. There will not be any sharp edges and all corners are curved to avoid bacteria/fungal contamination.
The wall panels are supported to the masonry wall with stainless steels brackets and fixtures and using nonferrous hard ware. The door frames are made of 1.2mm stainless steel sheets of same grade.
Modular OT design and construction is provided with openings required for later inclusion of additional equipments, repair of installed equipments, without affecting the rigidity and strength of the structure.
All the four corners have return air duct outlet, the grill of which is made of stainless steel/Powder coated Aluminium. The joints between walls and ceiling (skirting) panels are connected by curved panels at a radius of 450mm.
The cupboards, cabinets and shelves inside the theatre, if necessary; provided with hinged swing doors and shall be provided with locks.
All provisions made in the Operation theatre ceiling for mounting other equipment i.e. Ceiling-mounted Operation theatre light, Pendants, Brackets for monitors, Cameras etc.
Tailor made, Special purpose Hospital Sinks/ INSTRUMENT WASH SINKS available in considerable size of depth and length as per customer requirement.

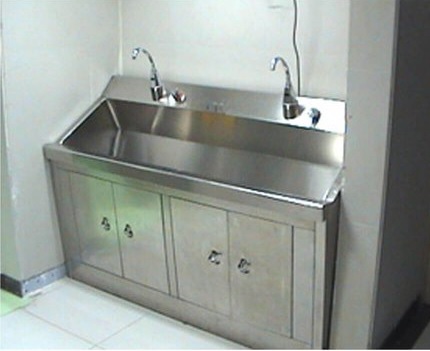

Sensor or Manual operated scrub sink. It is an advanced compact fully stainless steel sink which offers scrub stations. Surub sink is fabricated from type 304, 1.2mm stainless steel.
The scrub is polished to a satin finish. The scrub sink is fitted out with sensor tap or Foot / Elbow operated tap.The unit is designed to be installed on the wall using brackets.

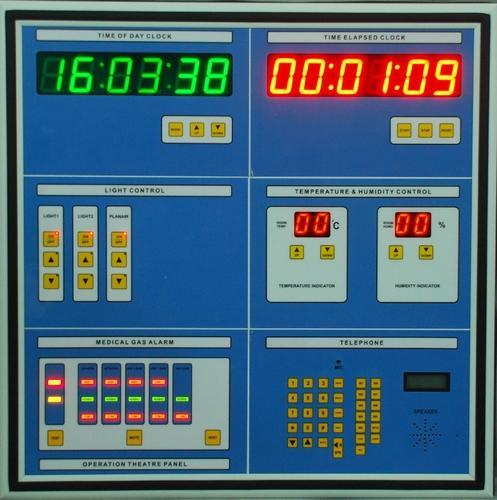

Surgeon Control panel has been designed to cope with technology and equipment in operating
Enviroment.it is designed to be user friendly and ease of operation and maintaining purpose. it comprises the following.
Digital Display Operation theatre Control Panel, consists of the following displays.
- Standard Clock / Time day clock
- Elapsed day clock
- Lighting Controls / Telephone by others
- Medical Gas alarms
- Temperatue & Relative humidity display
- Positive Pressure indicator

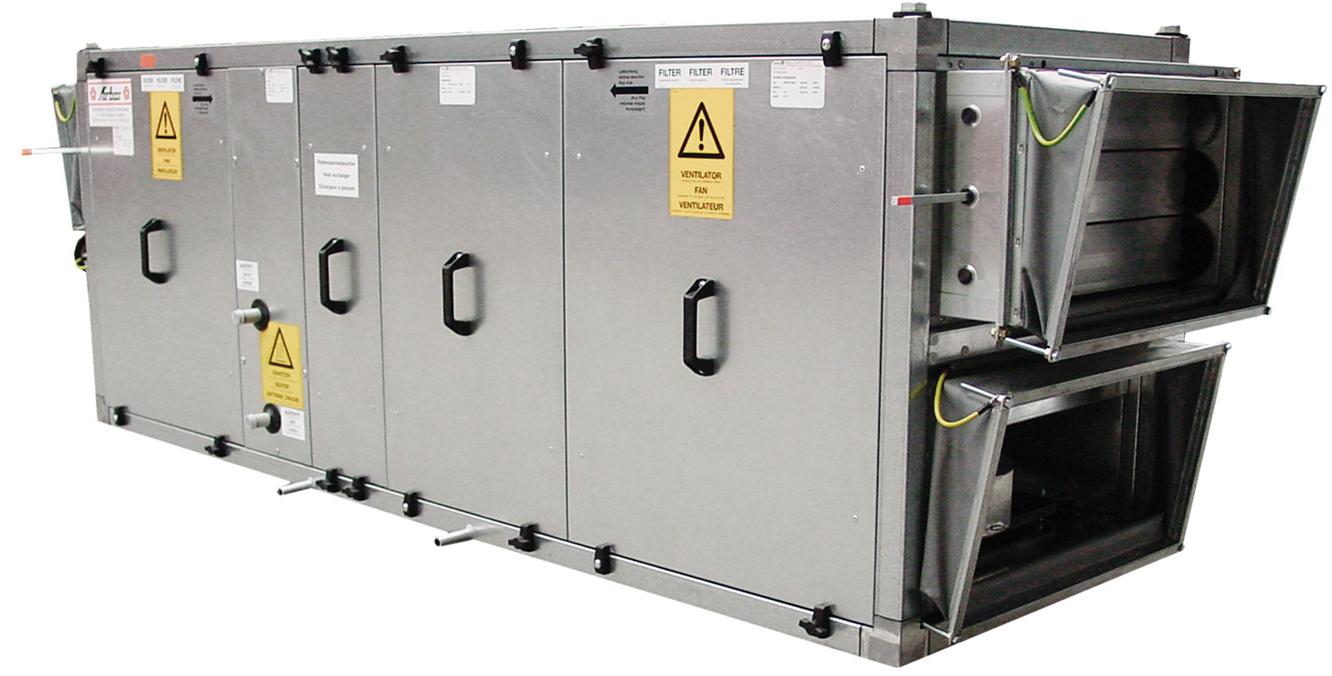

These units are ideal for handling large air quantities. The modular design
sections offer both sturdy construction and flexible combination of components
such as coils and filters to suit specific applications.

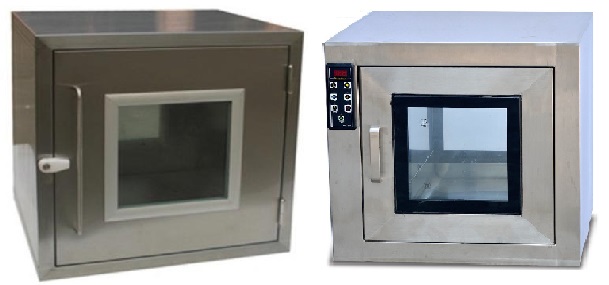

Pass Boxes, are so designed to handle the soiled materials from sterile areas,
To transfer to an adjacent room-without compromise in air quality.
The special design of doors allows opening of only one door at a time.
Pass boxes are available in two models;
Static pass boxes and Dynamic Pass Boxes.
DIGITAL ELECTRONIC CONTROL SYSTEM INCORPORATED.
The SS double shell, made of SS 304, 1.2 mm thick material.
Static Pass Box:
| Product | Static Pass Box |
| Construction | Stainless Steel 304 / 316 / 316L |
| Door | Solid door w/ mechanical or electrical interlocked |
| Window | Tempered Glass |
| Accessories | Hour meter |
| Electricals | Hour Meter, Fluorescent light, UV light, Electromagnet for door interlocking, Buzzer and Indicator lamps |
| Window | Tempered Glass |
| UV Lamp | Optional |
| HEPA Filter | Optional |
| Filtration efficiency | ≥ 99.99% @ ≥ 0.3μm |
| Power Supply | 220 / 230 Volts |
| Certifications | CE and ISO |
Dynamic Pass Box:
| Product | Dynamic Pass Through Box |
| Construction | Stainless Steel 304 / 316 / 316L |
| Door | Solid door w/ mechanical or electrical interlocked |
| Window | Tempered Glass |
| UV Lamp | Optional |
| HEPA Filter | Optional |
| Suction Filter | Stainless Steel w/ 95% down to 5 µ Efficiency (EU-4 Rating.) |
| Supply Filter | Aluminum w/ 99.999% down to 0.001 µ (EU-14 Rating.) |
| Blower | Branded Heavy duty |
| Noise | <78 |
| Power Supply | 220 / 230 Volts |
| Accessories | Hour meter, Magnehelic / Minihelic Pressure Gauge |
| Electricals | Hour Meter, Fluorescent light, UV light, Electromagnet for door interlocking, Buzzer and Indicator lamps |
| Air Shower Facility | Optional |
| Cleanliness | Class 100 |
| Certifications | CE and ISO |

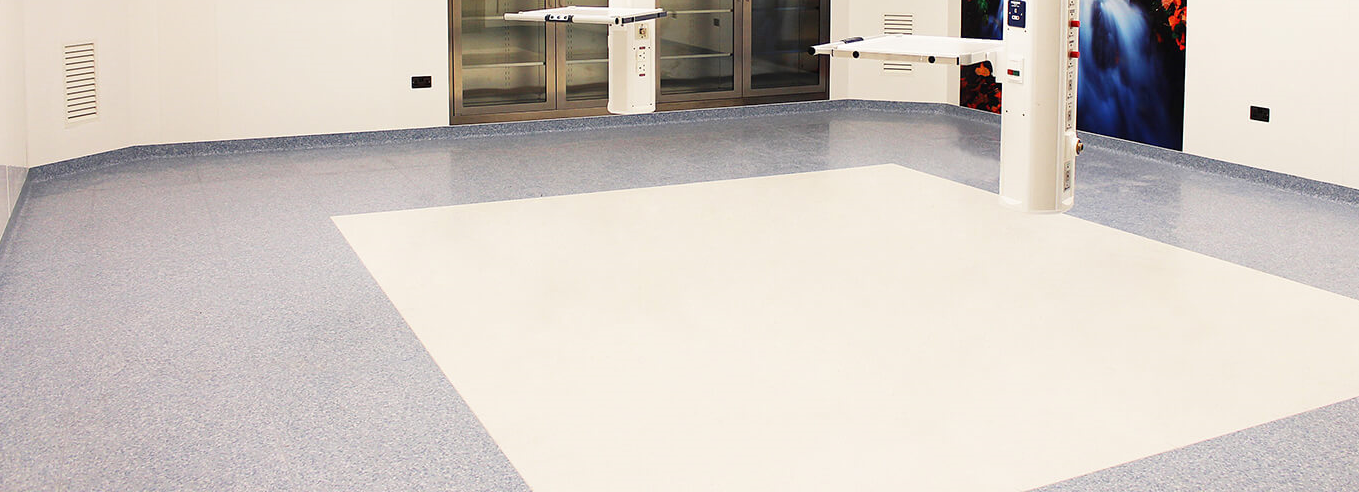

Options for Floor finish:
Operation theatres with choice of Antistatic seamless, moulded floorings.
These are available in selected colours.
- FRP laminated moulded flooring with covings.
- Antistatic Epoxy flooring with covings.
- Seam welded Vinyl floor coverings.
The flooring has curved skirting near the walls.
OPERATION THEATRE MAIN DOOR:

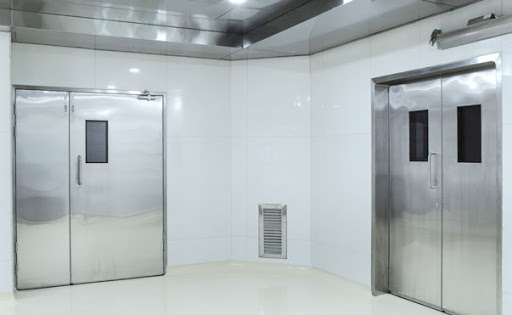

Stainless Steel Double swing Doors with heavy duty SS Hinges - Manual Stainless Steel Doors
in different sizes according to different opening sizes. Also Lead Shielded Radiation Protection doors
suitable for X-ray, CT room , Operation theatre, Cathlab door etc..
OPERATION THEATRE MAIN DOOR:

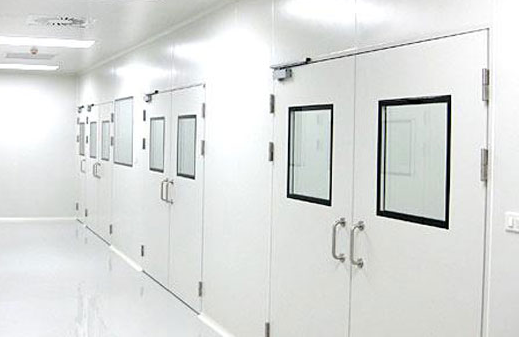

Modular PUF Double swing Doors with heavy duty Hinges - Manual GI Puf Doors.
in different sizes according to different opening sizes. Also Lead Shielded Radiation Protection
doors suitable for X-ray, CT room , Operation theatre, Cathlab door etc.
Cold Room Door , Modular PUF Panel Door , Clean Room Doors , Sliding Doors ,
Cold Storage Doors , Swing door.
